| NK Ring |
|
| ■Bearing steels(SUJ2, SAE52100) |
 |
| |

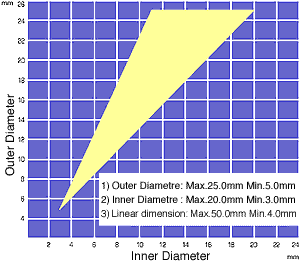

■Manufacturing range
The range where the SUJ2 ring can be manufactured
is a figure below. |
|
|
|
 |
|
|
| |
|
|
■Size accuracy
The size accuracy of “cold forging products” and
“cold forging + both ends processing products” is shown as blow
table. |
|
| |
Outer
diameter |
Inner
diameter |
Length |
Chamfering |
Circularity |
Cylindricity |
Thickness
diviation |
Perpendicularity |
| cold
forging |
±0.05 |
±0.05 |
±0.15 |
- |
≦0.03 |
≦0.04 |
≦0.04 |
- |
| Cold
forging + both ends processing |
±0.05 |
±0.05 |
±0.05 |
±0.15 |
≦0.03 |
≦0.04 |
≦0.04 |
≦0.04 |
Note) The range and accuracy are are general.
Please consult about the range and accuracy that exceeds the above-mentioned
value. |
|
| |

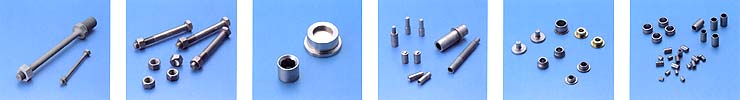

| Additionally,
precise cold forging products |
|
| ■High strength special alloy and another |
 |
| |
| Multistep
former |
|
Both
ends processing automatic machine |
|
CNC
single function
machine |
 |
|
 |
|
 |
|
|
|
