The Super 70 is a new type
of steel developed through multiple recursive analyses of Nippon Koshuha's
long experience in the high-speed steel industry and users, evaluations
via a computer.
Features
of S70
Hardened at temperature below 1200
to obtain the maximum hardness of HRC70 as the soluble high-speed
steel.
Appropriate component design ensures finer structure and well-balanced
hardness and tenacity.
Almost the same machinability as that of the steels currently
in use.
@
Applications

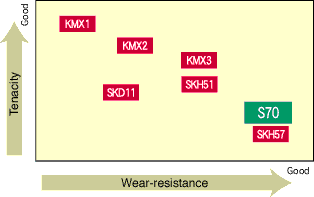

Position
of S70
Forming
tools
Very hard rolls (Sendzimir work rolls)
Punches with service lives as long as cemented carbide tools (such
as counter punches and canning punches).
@
@

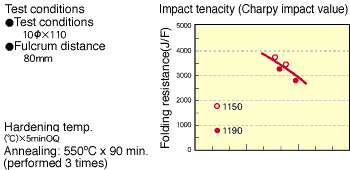

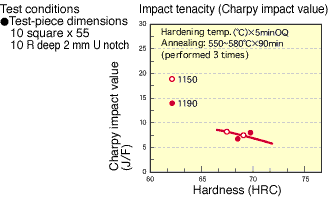

Tenacity
@
@

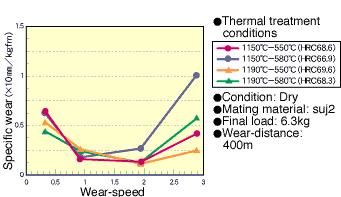

Wear-resistance

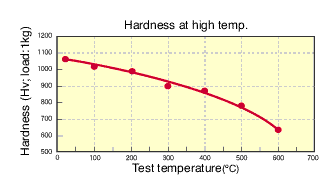

Hardness
and softening resistance at high temperature
Good
wear-resistance due to superior hardness

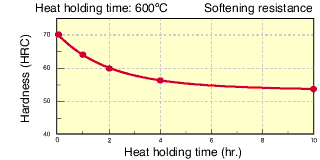

Maintains
high hardness even at high temperatures and offers superior softening
resistance.
@

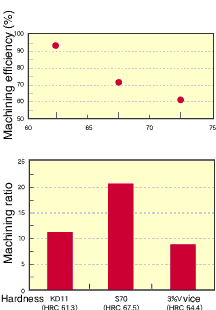

Machinability

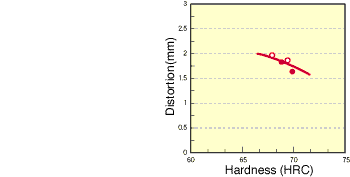

Physical
characteristics
Less
VC carbide deteriorating the machinability and fine primary carbide
offer superior machinability even though being very hard.
@

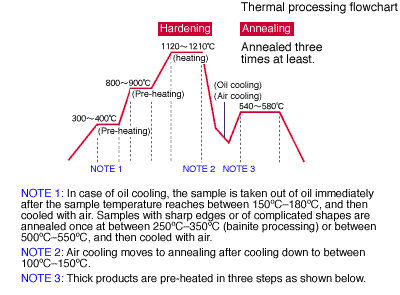

Thermal
processing characteristics
@
