The KDAMAX is high-performance
hot-tool steel for large-size dies that features superior crack resistance
at the round corners of metal molds and crack resistance at water holes.
Features
of KDAMAX
1.Superior heat-check resistance.
Superior heat-check resistance for complicated mold shapes.@Prolongs
the service life at round corners of metal molds where complex
stresses are centralized when manufacturing thin products. 2.Suppresses large cracks at the water holes.@Suppresses
large cracks at the water holes due to embrittlement in water
caused by rust. 3.Superior hardening performance.@Improves the hardening
performance to suppress tenacity deterioration in large-size products.
@
Applications
@

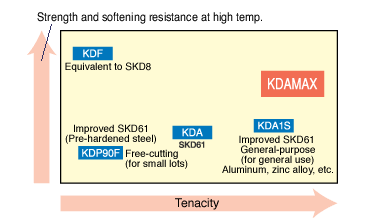

Position
of KDAMAX
Die-casting
molds
Hot-forging molds
Molds with complex shapes with projections and cavities
Large-size molds
@
@

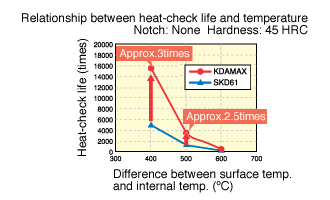

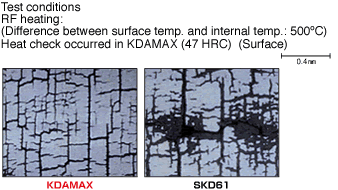

Heat-check
resistance
1)
Cracks in the KDAMAX are as shallow as 40% of those in the SKD61.
2) The width of cracks on the die surface expands slowly.
@

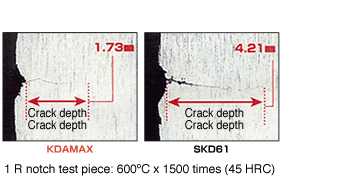

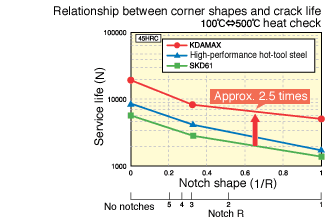

Crack
resistance at R corners
1)
Cracks in the KDAMAX are as short as 40% of those in the SKD61.
2) Cracks from the die surface to the water holes progress slowly.

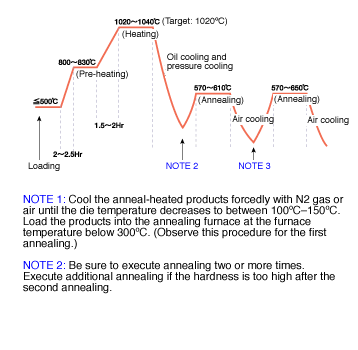

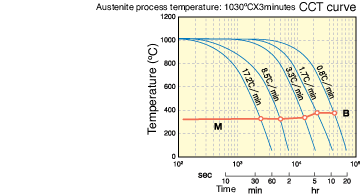

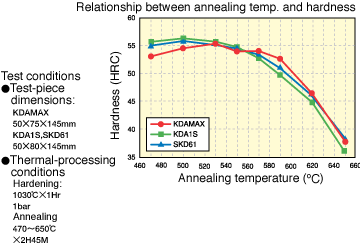

Thermal
processing characteristics
@
In-water
embrittlement resistance
The
KDAMAX suppresses rust generation in water in comparison with the
SKD61 and improved steel.
@
@

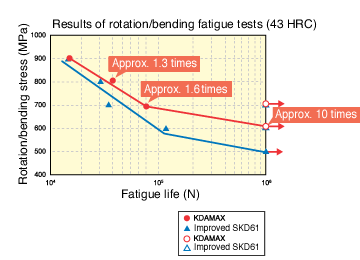

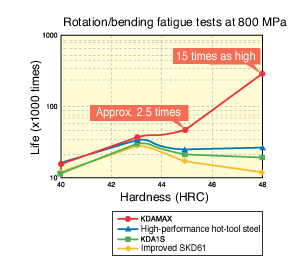

Fatigue
resistance
Few
cracks at the water hole of molds improve the service life by 1.3
to 10 times in comparison with the SKD61 and improved steel.
@
@

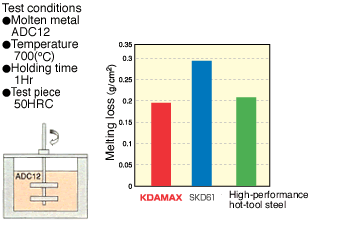

Melting-loss
resistance
The
KDAMAX has a 50% higher melting-loss performance than the SKD61.
@
